I försändelsen ingår MD-01 eller MD-02 controller, Rotor, CD och mus. Angen vilken controller ni vill ha.

Alfaspids stora AZ och EL-rotor med 0,1 grads noggrannhet!

OBS: I de flesta fall levererar vi rotorer direkt ifrån fabrik till kund, därav har de flesta rotorerna "ej i lager" status.

Specifikationer:
Rör dia för montering: 45-65mm
Max rör dia för elevering: 52mm
Upplösning: 0,5 grader (rotor kontrollern kan 1 grad)
Vikt: 22kg
Dubbel snäckväxel
Dragmoment: vid 12V-24V = 583-903Nm!

Rotor och kontrollboxar fungerar utmärkt med till exempel hamradio deluxe.

Important:  this is only rotator. You must add either MD-01 or MD-02 control box.

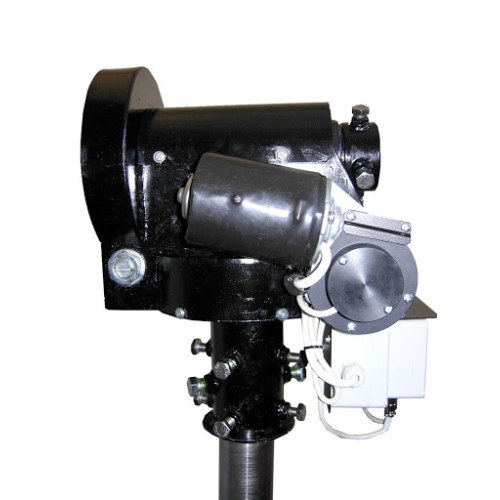

NEW HIGH RESOLUTION ROTOR for Azimuth and Elevation
RESOLUTION: 0.1 Degree !

This new set, BIG-RAS/HR is a high persision (track) rototator system
Rotor Controller MD-01 or MD-02 has many functions which can be configured by the user, a Dual Voltage power supply PS-01 is available and a switcher for external devices

The BIG-RAS/HR rotor is a two engine rotor which has installed two position sensors (transsmision 0,0058 degree on impulse) counting will be 0,1 degree on impulse

To control the rotor through the MD-01 or MD-02 driver module you need 4-core control cable (4*1.5mm2) to control the AZ & EL engines and 8-core to detect the positions sensors.

* BIG-RAS/HR will handle Big systems arry's, dishes up to 6 Meter !!

SPID BIG-RAS/HR set is delivered incl.

* High Resolution BIG-RAS/HR Rotor

The BIG-RAS/HR rotator can be mount on a pipe of max. 68mm.
Max. diameter pipe for elevation is 51mm

* Double metal worm gear drive reduction for holding position in the wind
* High torque low voltage DC motor.
* Electronic HALL Sensors for position.
* Low backlash.
* Uses 4 core controll cable connection (2 for each rotator)
* Uses 8 core controll cable connection for Positions sensors
* Free Firmware update through Serial port (free of charge)
* Turning speed rotator: 60 sec / 105 degree (3.42 min / 360 dgr)
* Track software available (0.1dgr resolution): Orbitron, PstRotator, (Moonsked soon available)
