Modell: RAK-HR

I försändelsen ingår MD-01 eller MD-02 controller, Rotor, CD och mus.

Spids medium-stora AZ rotor.

OBS: I de flesta fall levererar vi rotorer direkt ifrån fabrik till kund, därav har de flesta rotorerna "ej i lager" status.

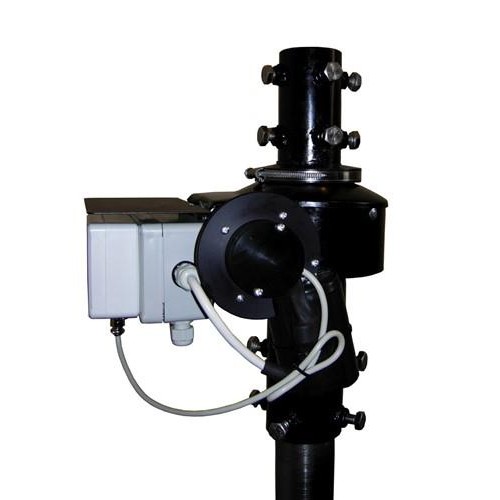

It can be used for lightweight construction, such as Yagi and heavy shortwave antennas. It is based on the worm gear, worm and worm wheel made of steel (as pictured). These features ensure long life and durability of the device. Its advantage is the possibility to adjust the worm and worm wheel clamping, clearing backlash in the drive mechanism, which may be necessary in the case of wear and tear after long-term use. The device surface is covered with powder coating, effectively protecting against corrosion. Range trading is protected by limit switches.

PARAMETER

Rotating Torque: 1,327 in lb/150 Nm at 12V-DC. 2,734 in lb/309 Nm at 18V-DC
Braking Torque: 13,984 in lb/1,580 Nm
Vertical load: >639 lbs/290 Kg
Break type: Double worm
Carter: Metal
Gear: Metal
Mast plate: Metal
Reduction ratio: 4950 / 1
Endocer type: Magnetic 32 pulse
Precision: 0.1° / 0.1°
Rotation angle: 360° +/- 180°
Rotation time for 360°: 90 sec.
Rotation time for 360° – 24V: 45 sec.
Electric motor: 12 Vdc
Enviornment: -20° / +50°
Weight antenna rotor: 12 Kg
Max mast diameter: 66m
