I försändelsen ingår Rot1Prog controller, Rotor, CD och mus.

Som standard är interface emot datorn numera USB för denna controller. Om Ni vill ha RS232 går det att få det, men då måste ni meddela oss detta.

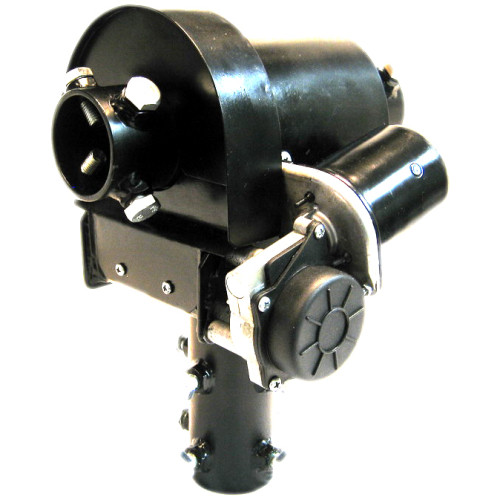

Spids elevations-rotor.

Rotor works with controller Rot1Prog. It it can be used for lightweight construction, such as Yagi and heavy shortwave antennas. It is based on the worm gear, worm and worm wheel made of steel (as pictured). These features ensure long life and durability of the device. Its advantage is the possibility to adjust the worm and worm wheel clamping, clearing backlash in the drive mechanism, which may be necessary in the case of wear and tear after long-term use. The device surface is covered with powder coating, effectively protecting against corrosion. Range trading is protected by limit switches.

PARAMETER VALUE

Rotating Torque: 1800

Rotating Torque – 24V: 3240

Braking Torque: 14000

Vertical load: 550lbs

Break type: Double worm

Carter: Metal

Gear: Metal

Mast plate: Metal

Reduction ratio: 4950 / 1

Endocer type: Magnetic 6 pulse

Precision: 1° / 1.0°

Rotation angle: 360° +/- 180°

Rotation time for 360°: 90 sec.

Rotation time for 360° – 24V: 45 sec.

Electric motor: 12 Vdc

Enviornment: -20° / +50°

Weight antenna rotor: 12 Kg
