N-connector, clamp
Type N, male (plug), straight, TC style connector for FBT-400, LMR®-400, TCOM®-400, and T-RAD®-400-FR type cables. The TC-400-NMC-2 features a solder-pin connector and is a perfect option for stranded center conductors. The Type N is a durable, weatherproof, medium-size RF connector designed for systems where excellent RF and mechanical performance is critical. They feature a threaded coupling mechanism and are fully interchangeable with N-Type connectors made to the MIL-C-39012 specification.
| Part Number | TC-400-NMC-2 |
| Interface | N |
| Gender | Male |
| Orientation | Straight Plug |
| PIM Rating | N/A |
| Stock Code | 3190-6077 |
| VSWR Freq | <1.25:1 |
| VSWR Freq GHz | 2.5 |
| Coupling Nut | Knurl |
| Inner Contact Attach | Solder |
| Outer Contact Attach | Clamp |
| Body Finish | Nickel |
| Pin Finish | Gold |
| Length (in) | 1.5 |
| Length (mm) | 38 |
| Width (in) | 0.75 |
| Width (mm) | 19.1 |
| Weight (lb) | 0.121 |
| Weight (g) | 54.9 |

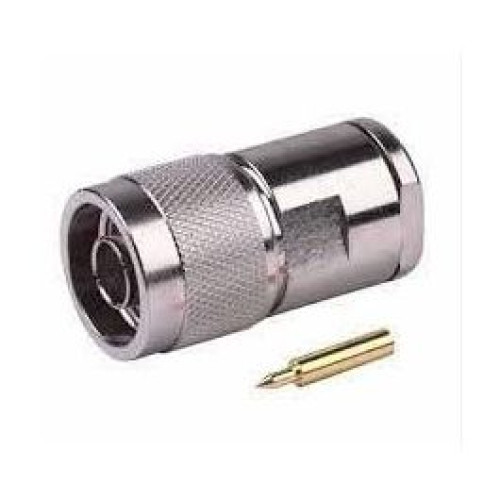

TC-400-NMC-2 N male crimp
- Brand: Times Microwave Systems
- Product Code: TC-400-NMC-2 N male crimp connector
- Availability: 3
-
179kr
- Ex Tax: 143kr
